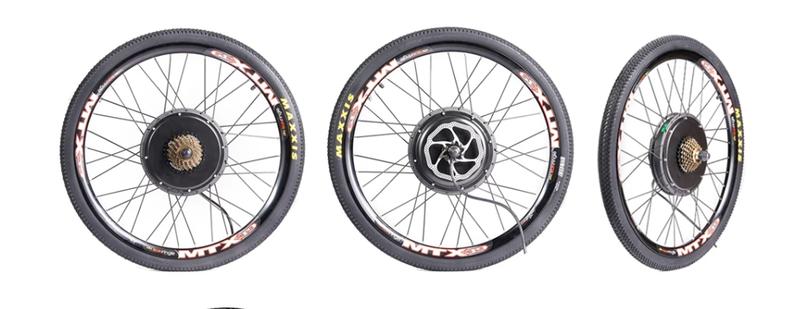

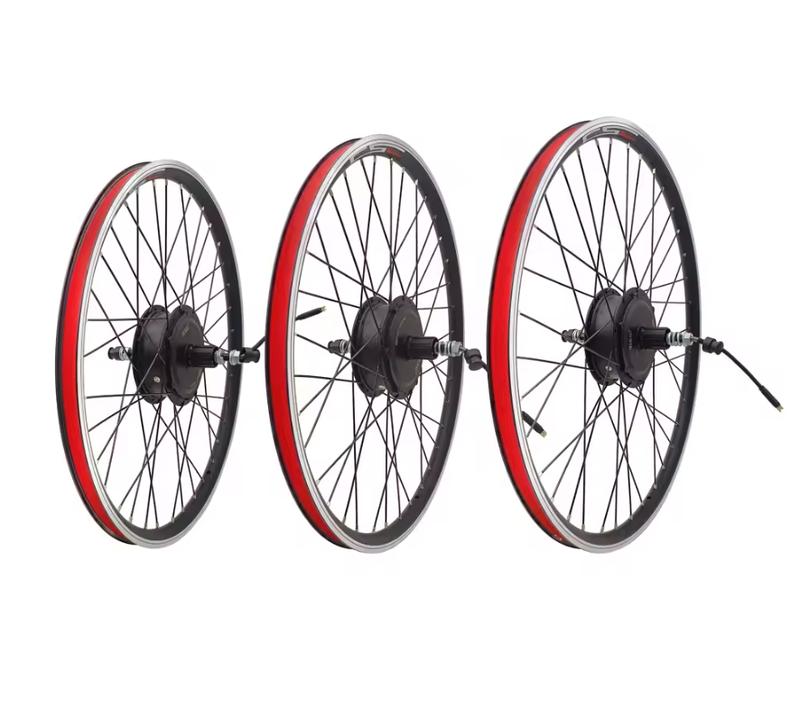

CSC Electric Bike Conversion Kits 36V 250W 350W Front Rear Wheel hub motor 48V 1OOOW 15OOW Electric Bicycle Brushless MTX rim

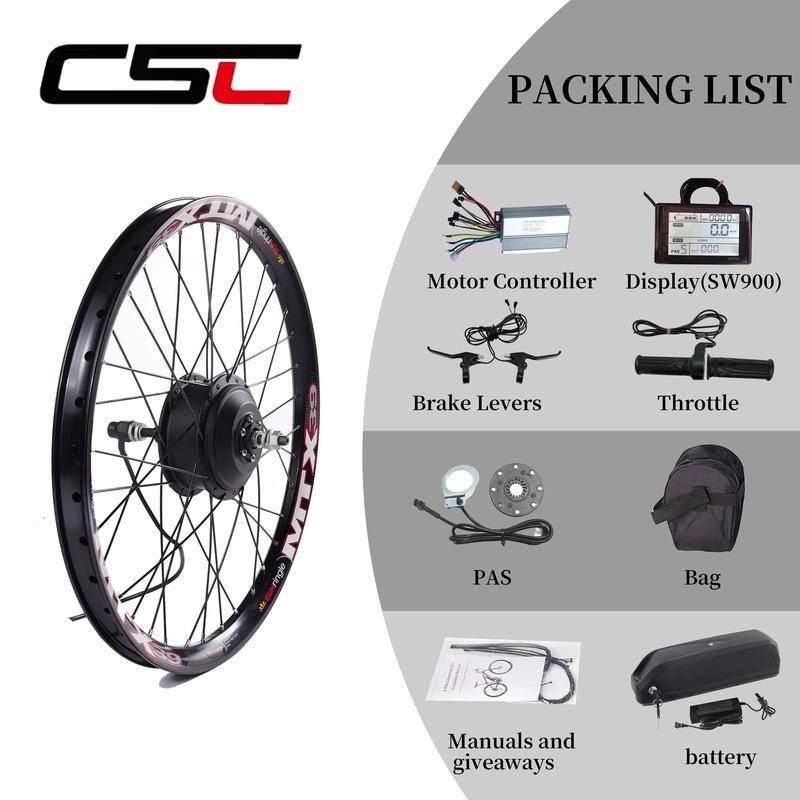

Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee ) If you choose CSC rim kit 1 * Rear motor wheel 1 * DC Controller 1 * Controller Bag 1 pair * Power cut-off Brake lever 1 * Display sw900 1 * 8 Magnet Pedal Assistant Sensor 1 set * Twist Throttle

Noted:Conversion Kit not include Battery, ( If you need a Battery, Please contact us for an additional fee ) 1 * Rear Motor wheel（26/27.5/29inch ） 1 * Tire 1 * 7 speed Freewheel 1 * 160mm Disc brake Rotor 1 * DC Controller 1 * Controller Bag 1 pair * Power cut-off Brake lever 1 * Display SW900 1 * 8 Magnet Pedal Assistant Sensor 1 set * Twist Throttle

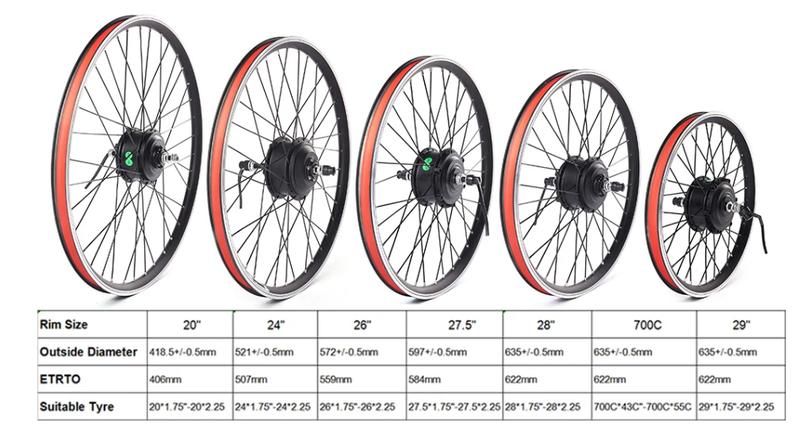

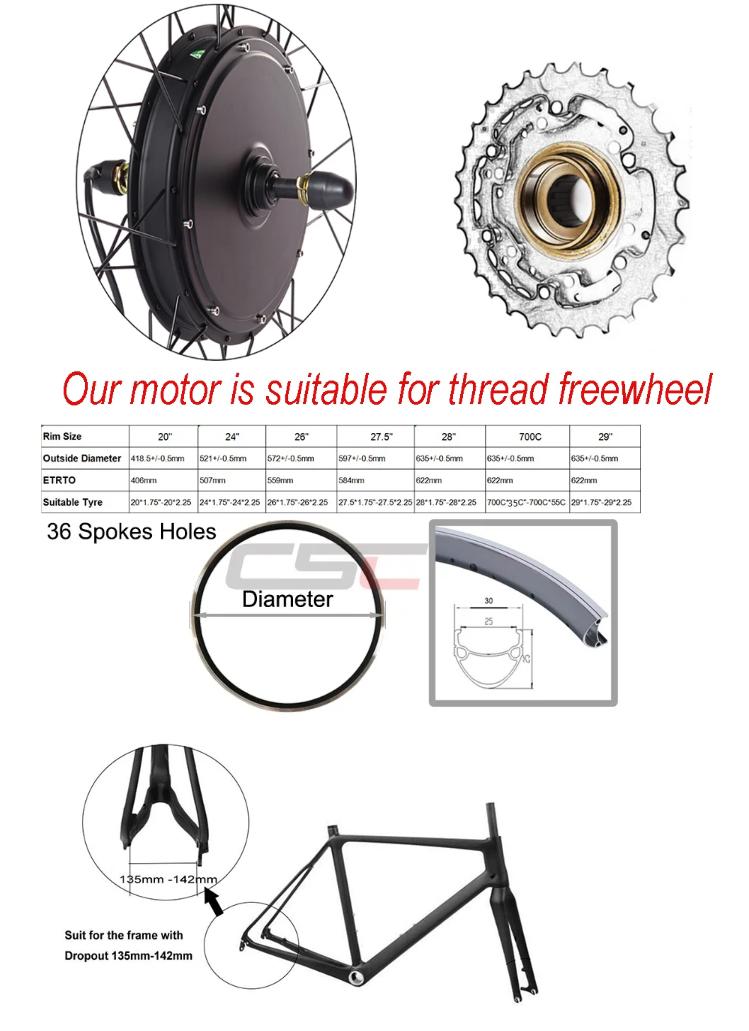

1. Full Speed: 36V 250/350/500W about 20-35km/hour, 48V 500W about 45-50km/h, 48V 1000W about 45-55km/h, 48V 1500W about 50-60km/h, (different wheel size, road&weather condition and rider's weight will have different speed) 2. Hub Motor: Brushless gear Hub Motor for 36V 250W 350W 500W ,48V 500W 750W Brushless Non-gear Hub Motor for 48V 1000W 1500W 3. Rim: Double-wall Aluminium Alloy Rim CSC rim ,inner width 25mm 24 26 27.5 inchs is SUN ringle MTX39, inner width 30mm 28 29 inchs 700C is SUN ringle MTX33, inner width 26mm 4. Wheel Bottom bracket: Rear 135mm-142mm 5. Torque:35NM for 36v 250W 350W 40NM for 36V 500W 48V 500W , 55NM for 1000W 60NM for 1500W 6. RPM:320 for 36V 250W 350w 350 for 36V 500W 425 for 48V 500W 470 for 48V 1000W 540 for 48V 1500W

SW900 display Product Features Display Function: Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display. (2) Control/Setting Function: Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

CSC 6 mosfet controller Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display Rated current: 15A ,Max current: 30±1A Size: 130*72*40mm CSC 12 mosfet controller Fit for: 48V 1000W motor wheel，SW900 Display Rated current: 22A , Max current: 44±1A Size: 172*83*42mm CSC 15 mosfet controller Fit for: 48V 1500W motor wheel ，SW900 Display Rated current: 35A , Max current: 70±1A Size: 210*83*42mm
