£247.00 - 616.00
CSC Electric bike Conversion Kit Rear 48V 1OOOW 15OOW hub Motor Wheel with 48V battery 26" 27.5" 29inch SUN RINGLE rim for EBIKE
Sold by CSC Bike Store
3 sold
Free shipping
Select options
Select
Shipping
£0.00
CSC Bike Store
19 items
Product description
Packing List
Noted:Conversion Kit
1 * Batteries & Chargers（Option, select "NO battery" which does not include battery and charger, select "with battery" which includes battery and charger）
1 * Rear Motor wheel（26/27.5/29inch ）
1 * Tire , Inner tube
1 * 7 speed Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle
Product Details
1. Full Speed:
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)

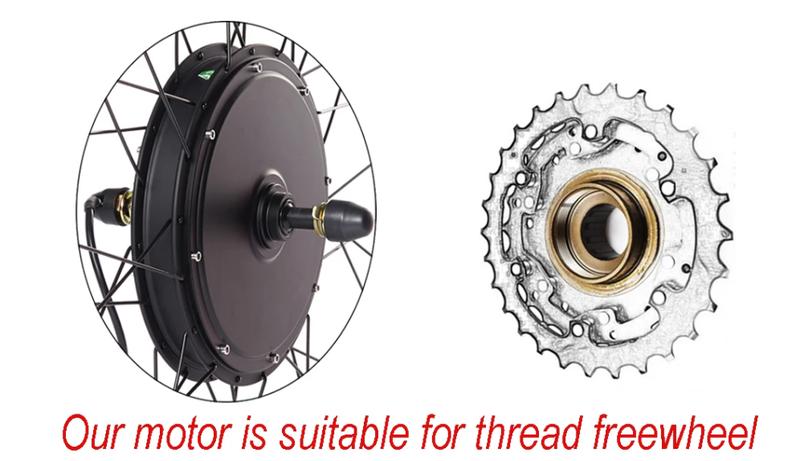

2. Hub Motor:
Brushless Non-gear Hub Motor
3. Rim: Double-wall Aluminium Alloy Rim
24 26 27.5 inchs is SUN ringle MTX39, inner width 30mm
28 29 inchs 700C is SUN ringle MTX33, inner width 26mm

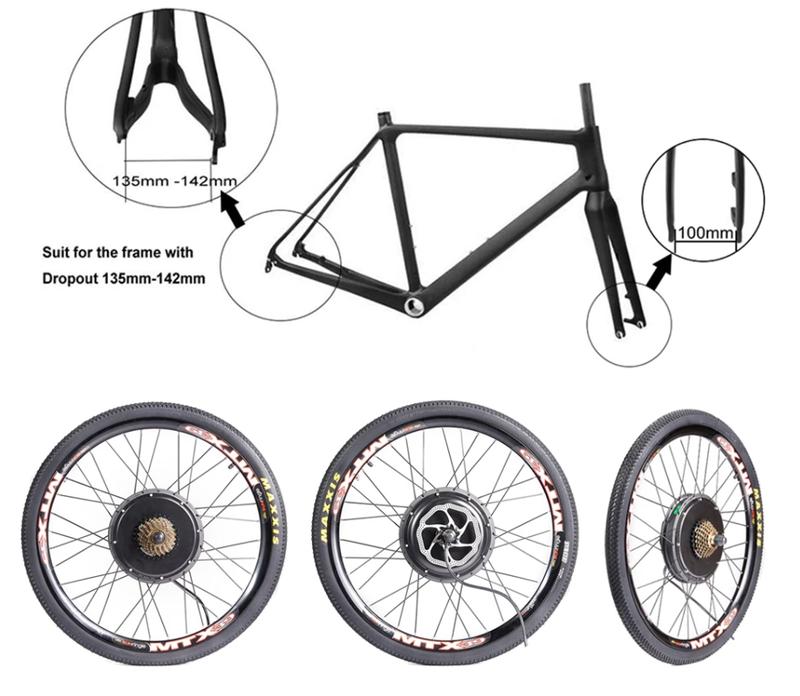

4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:
30-40NM for 1000W
35-45NM for 1500W
6. RPM:
470 for 48V 1000W
540 for 48V 1500W

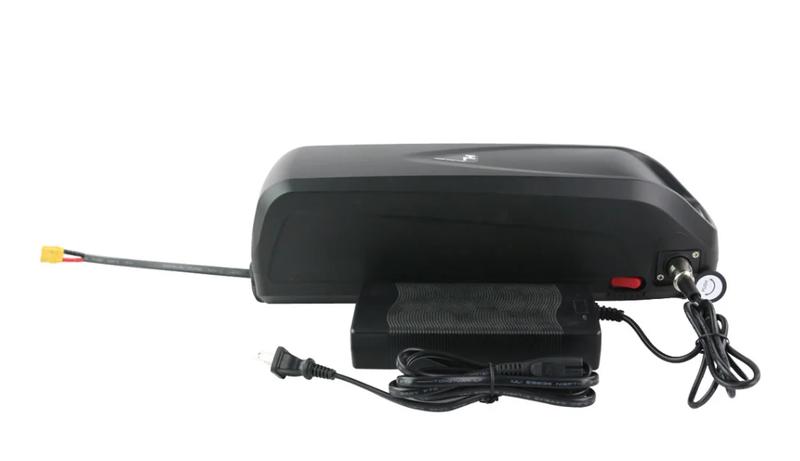

battery
Batteries & Chargers（Option, select "NO battery" which does not include battery and charger, select "with battery" which includes
Product Description
1. With USB port can charge Cell Phone and Bluetooth Speaker
2. New slim hailong style Case Battery with power button
3. Convenient Charge Port come with 3A faster charge
4. Waterproof and Solid plastic Case
5. LIghted battery LED power Indicator
6. Lock with Keys securely locks the mount on bike frame
Battery Packing List
1. Electric bike battery with high quality inbuilt BMS.
2. Ebike battery with EU plugElectric Bike Battery Specifications:
48V 18AH Battery
Nominal Voltage: 48V
Nominal Capacity: 18Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: Powerful 21700 3.7V 4500mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C

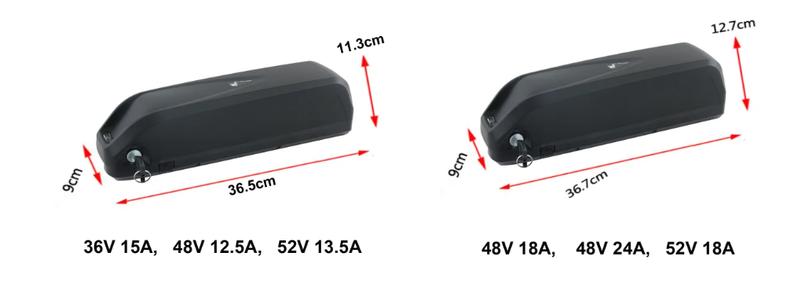

Dimensions: 90*127*367mm
Battery Weight: 4.77kg
Cycle life: ≥80% capacity after 800 cycles.
------------------------------------------------------------------
48V 24AH Battery
Nominal Voltage: 48V
Nominal Capacity: 24Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Powerful 21700 3.7V 4800mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*127*367mm
Battery Weight: 5.73kg
Cycle life: ≥80% capacity after 800 cycles.
Display
SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.
Controller
CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm
CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm
