CSC Electric bike Conversion Kit Rear 48V 1OOOW hub Motor Wheel Brushless gearless 26" 27.5" 29inch SUN RINGLE MTX rim for EBIKE
Sold by CSC Bike Store
1 sold
Free shipping
Select options
Select
Shipping
£0.00
CSC Bike Store
19 items
Product description
Packing List
Noted:Conversion Kit not include Battery,
1 * Rear Motor wheel（26/27.5/29inch ）
1 * Tire , Inner tube
1 * 7 speed Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle
Display
SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

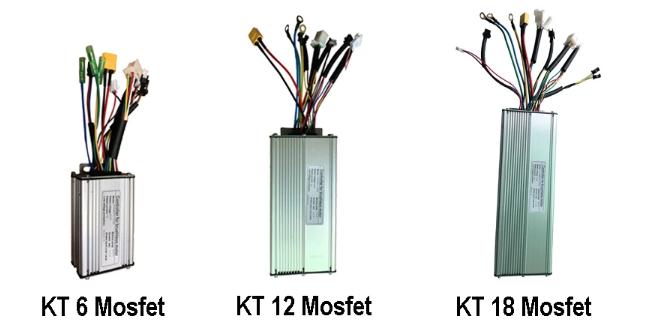

Controller
KT 12 mosfet controller
Fit for: 48V 1000W motor wheel，LCD3 Display
Rated current: 15A , Max current: 30±1A
Size: 176*82*41mm
KT 18 mosfet controller
Fit for: 48V 1500W motor wheel ，LCD3 Display
Rated current: 22A , Max current: 45±1A
Size: 240*82*41mm
48V 18AH Battery
Nominal Voltage: 48V
Nominal Capacity: 18Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: Powerful 21700 3.7V 4500mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 4.77kg
Cycle life: ≥80% capacity after 800 cycles.
------------------------------------------------------------------
48V 25AH Battery
Nominal Voltage: 48V
Nominal Capacity: 24Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Powerful 21700 3.7V 4800mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 5.73kg
Cycle life: ≥80% capacity after 800 cycles.
