CSC Electric bicycle Conversion Kit 48V 1OOOW 15OOW Brushless Hub motor 36V 350w ebike Conversion Kit 48V 18AH hailong battery

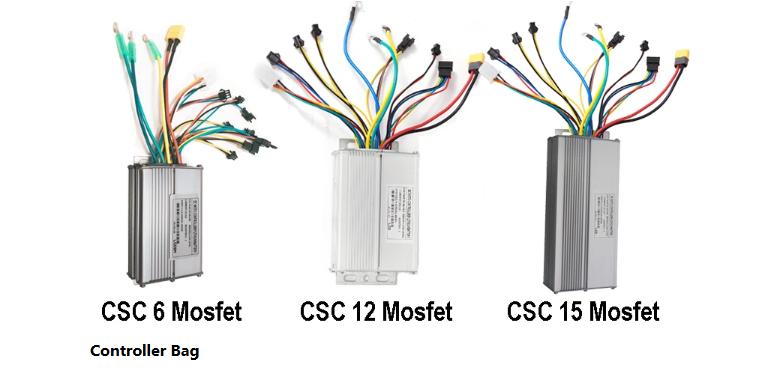

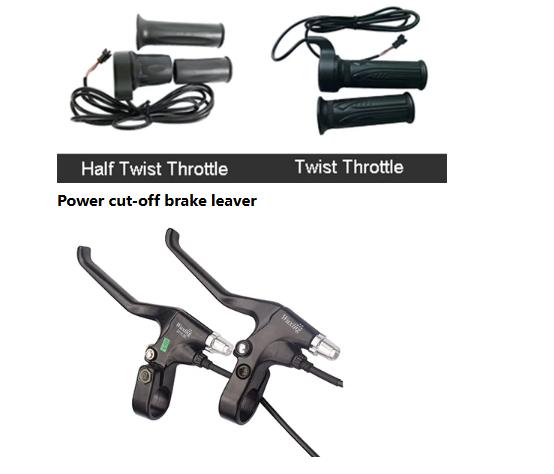

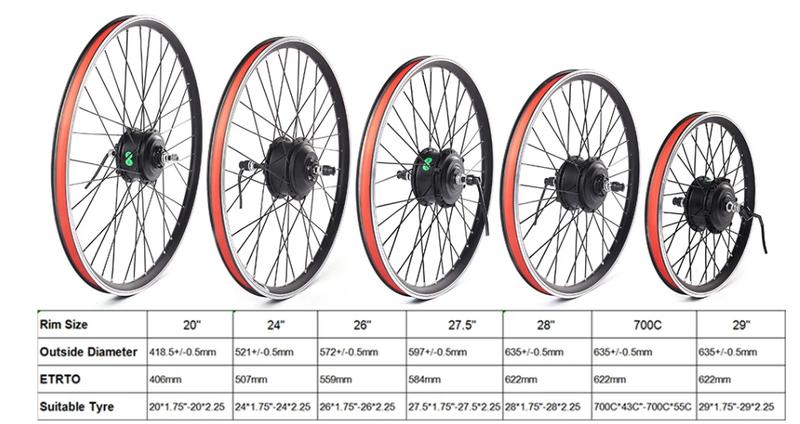

Noted:Conversion Kit not include , tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee ) 1 * battery and charger （If you order "NO battery", the battery and charger is not included） 1 * Rear motor wheel 1 * DC Controller 1 * Controller Bag 1 pair * Power cut-off Brake lever 1 * Display SW900 1 * 8 Magnet Pedal Assistant Sensor 1 set * Twist Throttle

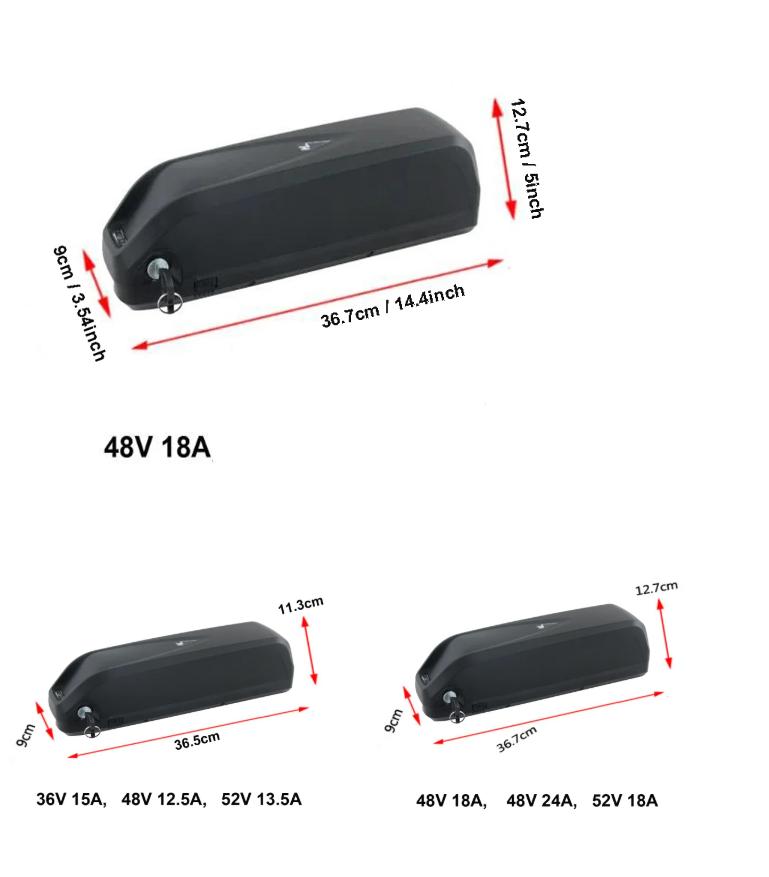

36V 15AH Battery Connector for Controller: XT60 Nominal Voltage: 36V Nominal Capacity: 15Ah Composed Type: 10Series 6Paralles 10S6P Cells: Powerful 18650 3.7V 2500mAh 10A 5C Cells BMS: 20 Amp continuous 50±10Amp maximum Fit Motor Power : 36V 250W 350W 500W Charge Current: 2-5A Charge Cut-off Voltage: 42V Discharge Cut-off Voltage: 30V Discharge Temperature: -20 to 65°C Charge Temperature: 0 to 45°C Dimensions: 90*110*360mm Battery Weight: 3.8kg Cycle life: ≥80% capacity after 800 cycles. ------------------------------------------------------------------ 48V 12.5AH Battery Connector for Controller: XT60 Nominal Voltage: 48V Nominal Capacity: 12.5Ah Composed Type: 13Series 5Paralles 13S5P Cells: Powerful 18650 3.7V 2500mAh 10A 5C Cells BMS: 30Amp continuous 100±10Amp maximum Fit Motor Power : 48V, 500W,750W, 1000W Charge Current: 2-5A Charge Cut-off Voltage: 54.6V Discharge Cut-off Voltage: 39V Discharge Temperature: -20 to 65°C Charge Temperature: 0 to 45°C Dimensions: 90*110*360mm Battery Weight: 4.1kg Cycle life: ≥80% capacity after 800 cycles. ------------------------------------------------------------------ 48V 18AH Battery Nominal Voltage: 48V Nominal Capacity: 18Ah Composed Type: 13Series 4Paralles 13S4P Cells: Powerful 21700 3.7V 4500mAh Cells BMS: 40Amp continuous 100±10Amp maximum Fit Motor Power : 48V 250W-1500W Charge Current: 2-5A Charge Cut-off Voltage: 54.6V Discharge Cut-off Voltage: 39V Discharge Temperature: -20 to 65°C Charge Temperature: 0 to 45°C Dimensions: 90*110*360mm Battery Weight: 4.77kg Cycle life: ≥80% capacity after 800 cycles. ------------------------------------------------------------------ 48V 24AH Battery Nominal Voltage: 48V Nominal Capacity: 24Ah Composed Type: 13Series 5Paralles 13S5P Cells: Powerful 21700 3.7V 4800mAh Cells BMS: 40Amp continuous 100±10Amp maximum Fit Motor Power : 48V 250W-1500W Charge Current: 2-5A Charge Cut-off Voltage: 54.6V Discharge Cut-off Voltage: 39V Discharge Temperature: -20 to 65°C Charge Temperature: 0 to 45°C Dimensions: 90

*110*360mm Battery Weight: 5.73kg Cycle life: ≥80% capacity after 800 cycles. ------------------------------------------------------------------ 52V 13.5AH Battery Nominal Voltage: 52V Nominal Capacity: 13.5Ah Composed Type: 14Series 3Paralles 14S3P Cells: Powerful 21700 3.7V 4500mAh Cells BMS: 30Amp continuous 100±10Amp maximum Fit Motor Power : 52V 250W-750W Charge Current: 2-5A Charge Cut-off Voltage: 60V Discharge Cut-off Voltage: 39V Discharge Temperature: -20 to 65°C Charge Temperature: 0 to 45°C Dimensions: 90*110*360mm Battery Weight: 4.15kg Cycle life: ≥80% capacity after 800 cycles. ------------------------------------------------------------------ 52V 18AH Battery Nominal Voltage: 52V Nominal Capacity: 18Ah Composed Type: 14Series 4Paralles 14S4P Cells: Powerful 21700 3.7V 4500mAh Cells BMS: 40Amp continuous 100±10Amp maximum Fit Motor Power : 52V 250W-1500W Charge Current: 2-5A Charge Cut-off Voltage: 60V Discharge Cut-off Voltage: 39-42V Discharge Temperature: -20 to 65°C Charge Temperature: 0 to 45°C Dimensions: 90*110*360mm Battery Weight: 4.99kg Cycle life: ≥80% capacity after 800 cycles. ------------------------------------------------------------------
