CSC Electric bicycle Conversion Kit 36V 250W350W500Webike Conversion Kit 48V 18AH hailong battery

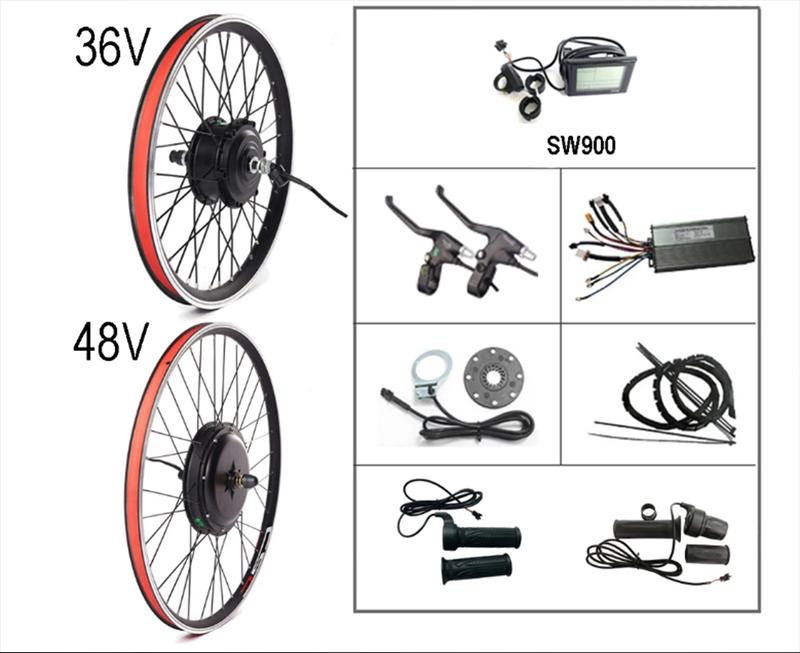

Noted:Conversion Kit not include , tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee ) 1 * battery and charger （If you order "NO battery", the battery and charger is not included） 1 * Rear motor wheel 1 * DC Controller 1 * Controller Bag 1 pair * Power cut-off Brake lever 1 * Display SW900 1 * 8 Magnet Pedal Assistant Sensor 1 set * Twist Throttle

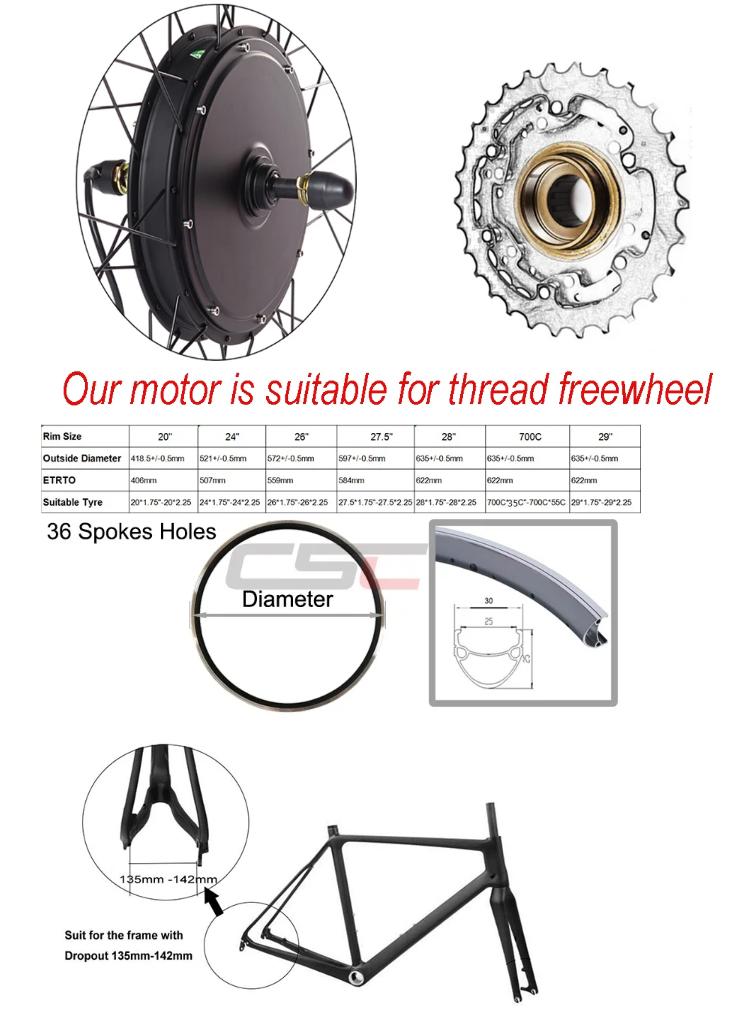

1. Full Speed: 36V 250/350/500W about 20-35km/hour, 48V 1000W about 45-55km/h, 48V 1500W about 50-60km/h, (different wheel size, road&weather condition and rider's weight will have different speed) 2. Hub Motor:Brushless gear Hub Motor for 36V Brushless Non-gear Hub Motor for 48V 3. Rim: Double-wall Aluminium Alloy Rim 4. Wheel Bottom bracket: Rear 135mm-142mm 5. Torque:25-35NM for 36v 250W 350W 500W 30-40NM for 500W 1000W 35-45NM for 1500W 6. RPM:320 for 36V 250W 350w 350 for 36V 500W 470 for 48V 500W 1000W 540 for 48V 1500W 7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please contact us

SW900 display Product Features Display Function: Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display. (2) Control/Setting Function: Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

CSC 6 mosfet controller Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display Rated current: 15A ,Max current: 30±1A Size: 100*64*32mm CSC 12 mosfet controller Fit for: 48V 1000W motor wheel，SW900 Display Rated current: 22A , Max current: 44±1A Size: 149*83.3*42mm CSC 15 mosfet controller Fit for: 48V 1500W motor wheel ，SW900 Display Rated current: 35A , Max current: 70±1A Size: 118.2*82.33*41mm
