£15.65

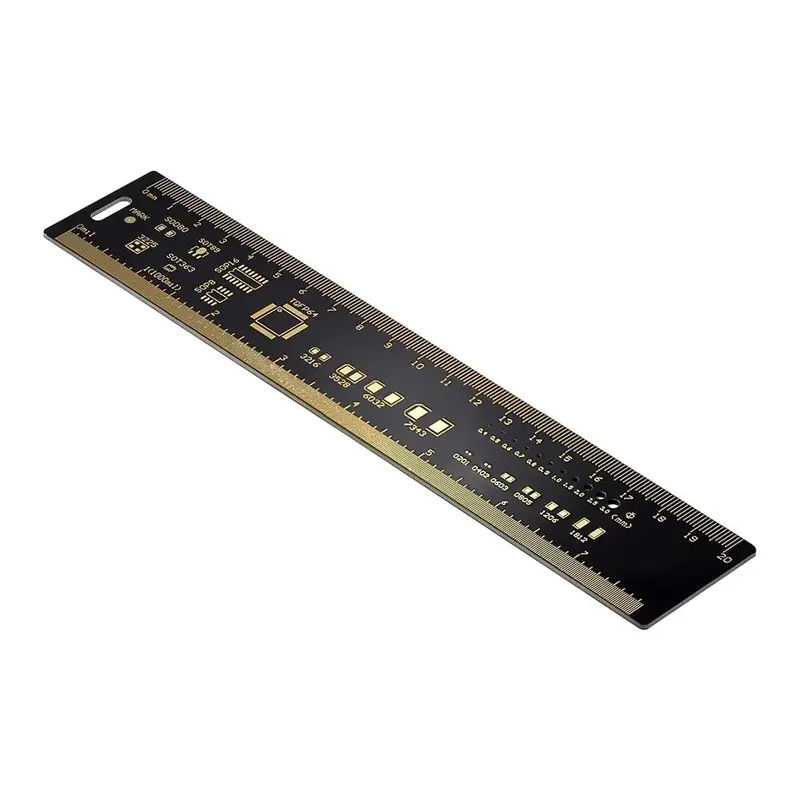

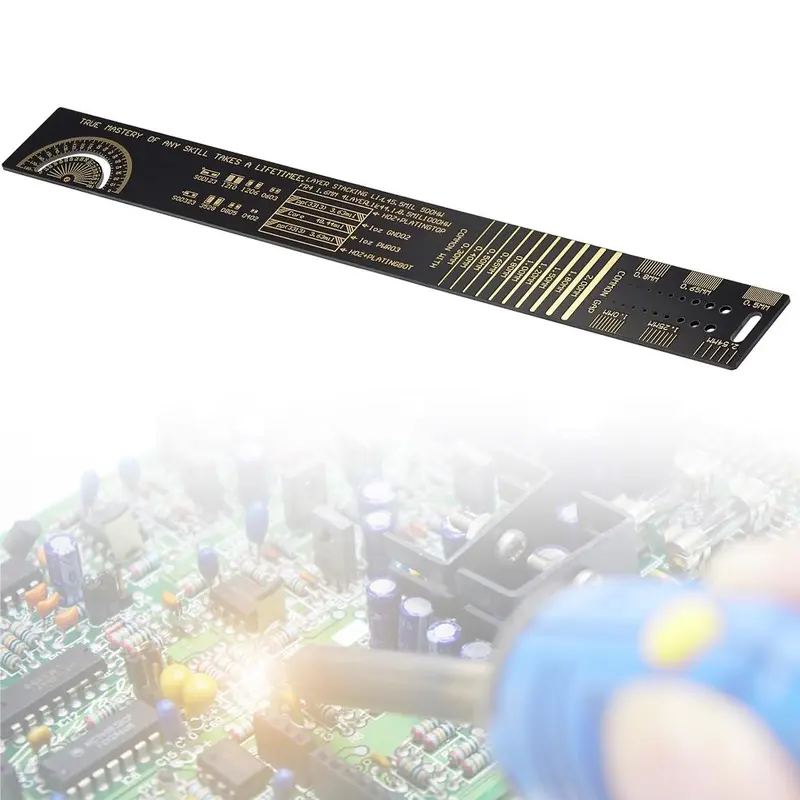

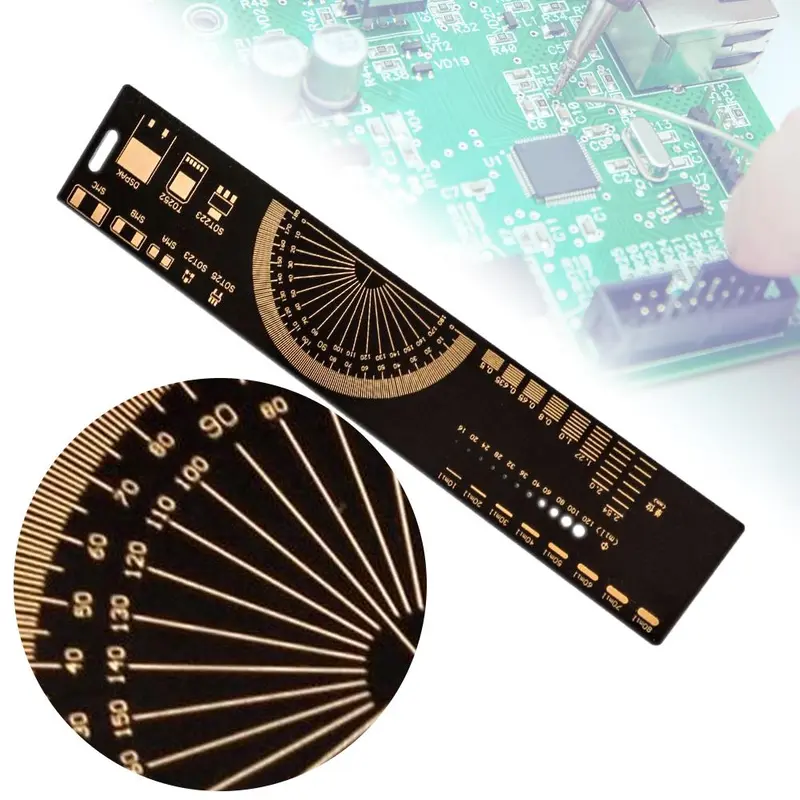

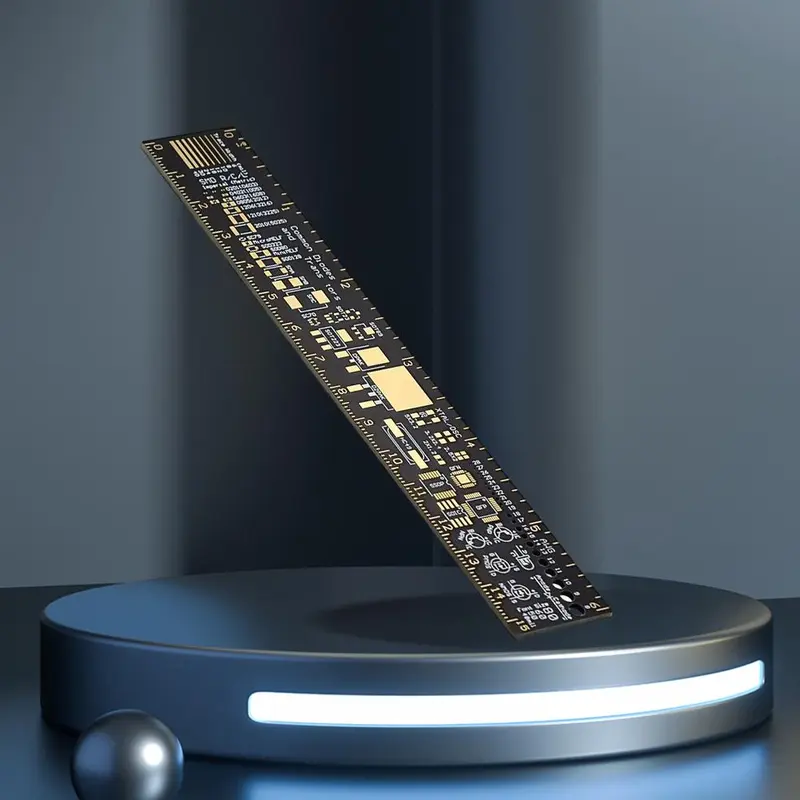

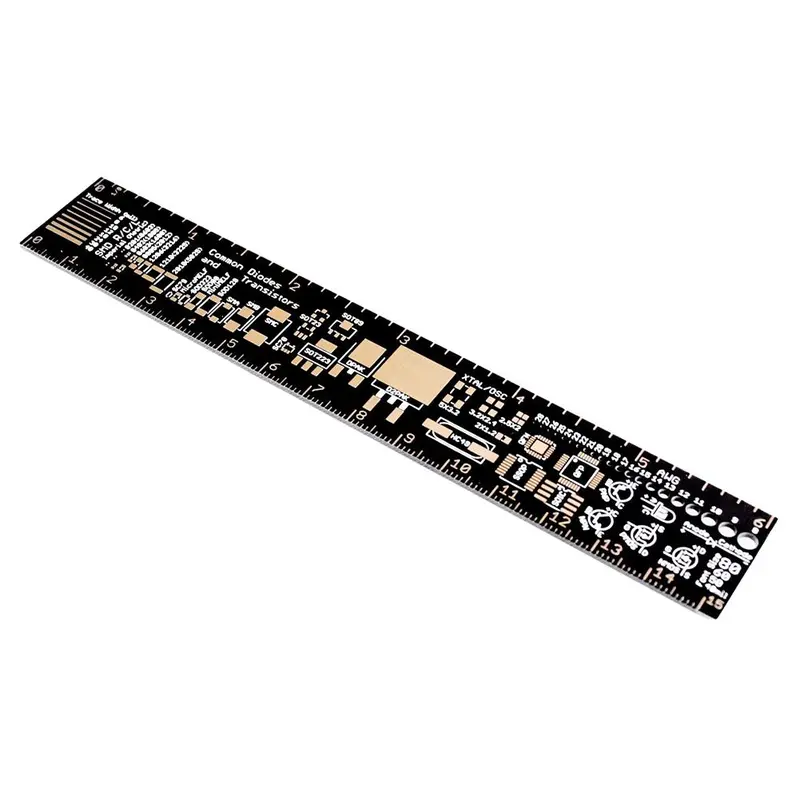

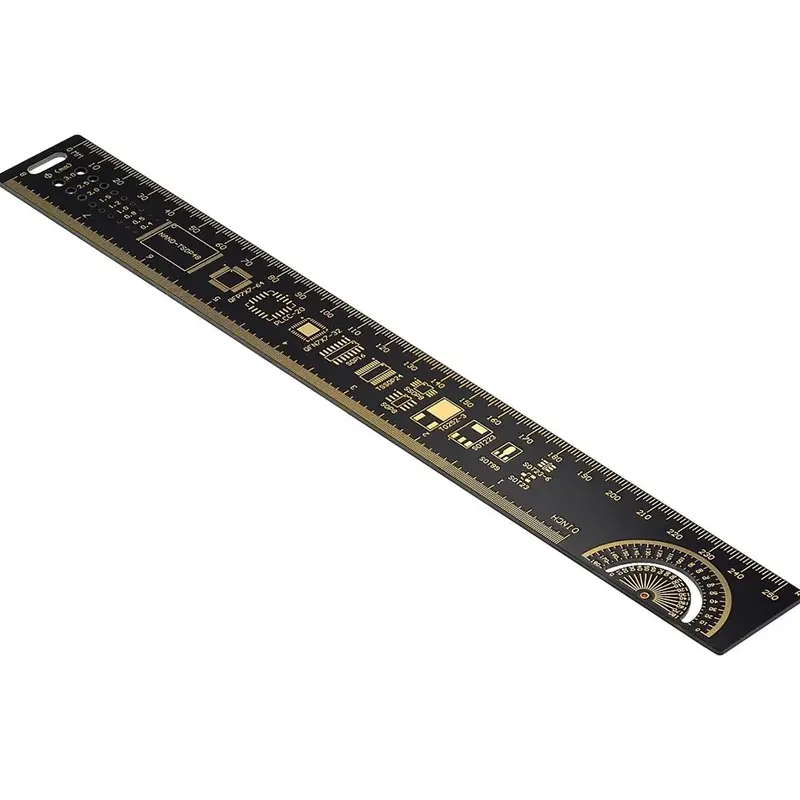

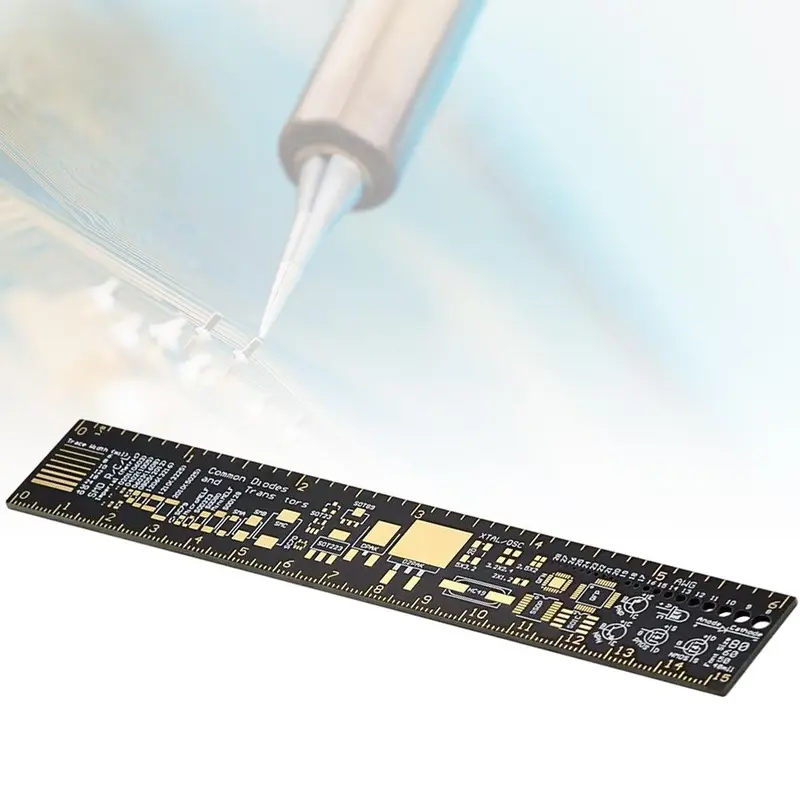

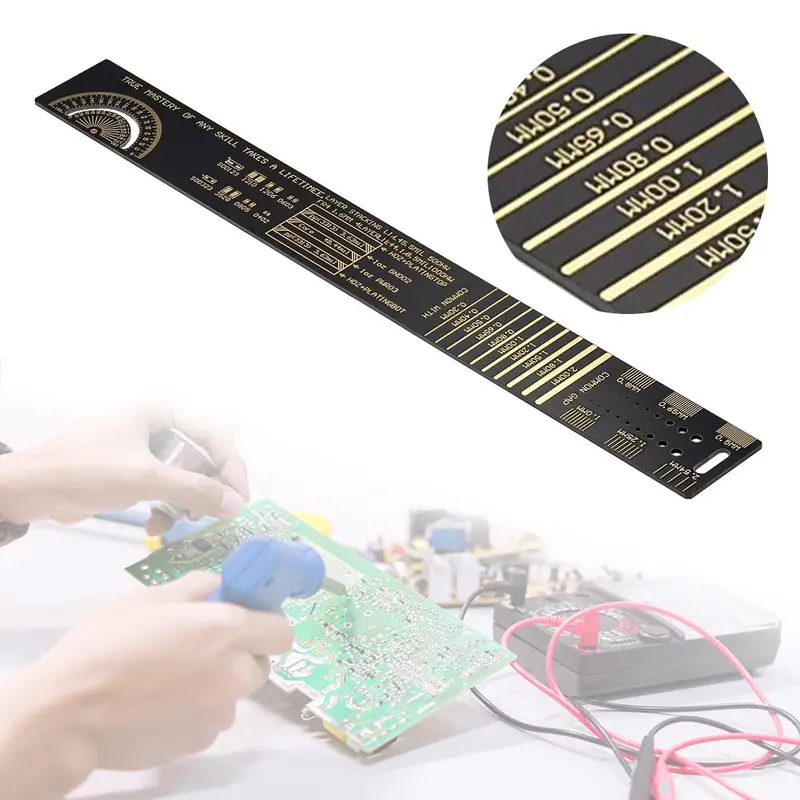

Printed Circuit Board Ruler with 180-Degree Measurements for Resistor, Capacitor, IC, SMD & More | 15cm, 20cm, 25cm

Sold by kevindz

Select options

Select

Shipping

£7.00

Specifications

kevindz
3,280 items

About this product

Warranty DurationNot Applicable

Product description

SPECIFICATIONS

Condition: New
Electronic Engineers Ruler: Printed Circuit Board Ruler
Hign-concerned Chemical: None
Measuring Tool: R-4 Gold Plated PCB Ruler
Type: Module




Feature: 1. Precision: PCB engineering rulers are known for their precise markings and scales, measured in millimeters or inches. They provide highly accurate measurement results, ensuring the utmost precision in your PCB projects. 2. Versatility: PCB ruler offer more than just standard measurements. They serve as versatile tools for calibrating component positions, hole spacing, circuit trace widths, and other critical aspects of PCB design. 3. Durability: Crafted from durable R-4 gold-plated PCB material, these R-4 gold plated PCB ruler are built to withstand the demands of prolonged usage and frequent handling. They maintain excellent performance even under rigorous conditions, ensuring long-lasting durability. 4. Ease of Use: PCB electronic engineers ruler are designed with user-friendliness in mind. The intuitive layout and well-defined markings make them easy to use, whether you're a professional engineer or a hobbyist. 5. Portable and Compact: These printed circuit board ruler are lightweight and compact, making them highly portable for on-the-go use. You can conveniently carry them with you to your office, client's site, or during fieldwork. Their compact size ensures they won't take up much space in your toolbox or bag, allowing you to have this essential measuring tool readily available whenever needed. Specification:

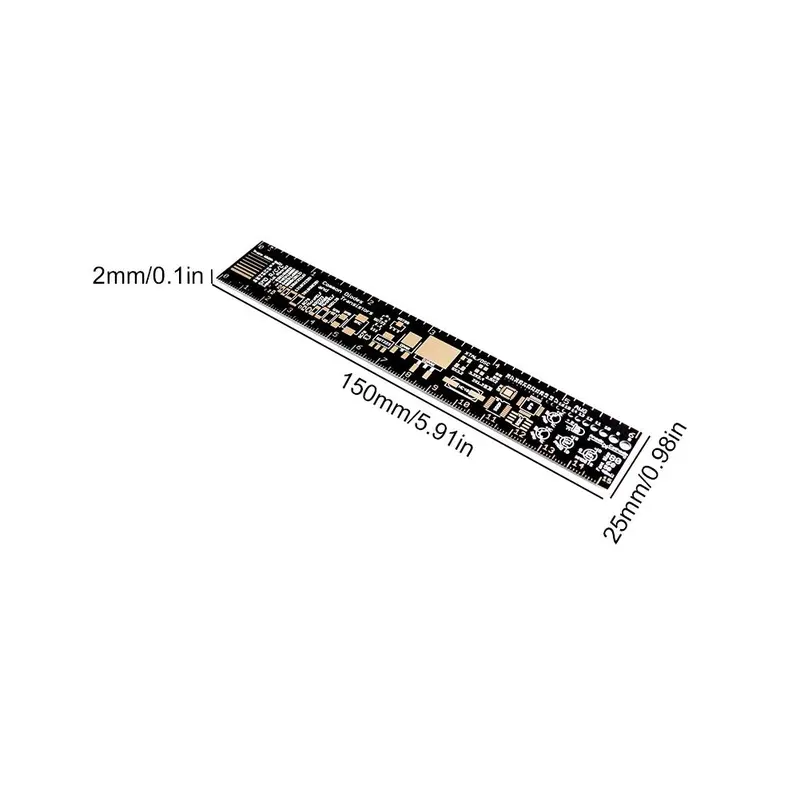

Type: Module Condition: New Specifications: 15CM range: size: 150 * 25 * 2MM/5.91x0.98x0.08inch 20CM range: size: 200 * 40 * 2MM/7.87x1.57x0.08inch 25CM range: size: 250 * 30 * 2MM/9.84x1.18x0.08inch 30CM range: size: 300 * 32 * 2MM/11.81x1.18x0.08inch Description: 1. This multifunctional PCB ruler integrates information related to PCB design, such as angle gauges, devices, IC pin spacing tables, etc. 2. Electronics enthusiasts urgently need a measurement tool that can set all necessary functions during the design process. In addition to the basic functions of measuring millimeters and inches, it also integrates relevant information about PCB design, such as angle gauges, devices, IC pin spacing tables Resistor capacitor chip packaging, commonly used for diameter reference drilling, and line width size reference. 4. We will print this information on the FR-4 gold-plated PCB. R-4 gold-plated PCB, high-end and atmospheric, high hardness, and wear-resistant.
Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.


Product
Included
15cm:
1 X PCB Engineering Ruler (Optional Specifications)
20cm:
1 X PCB Engineering Ruler (Optional Specifications)
25cm:
1 X PCB Engineering Ruler (Optional Specifications)


Product Introduction of Printed Circuit Board Ruler with 180-Degree Measurements for Resistor, Capacitor, IC, SMD & More | 15cm, 20cm, 25cm 60
Product Introduction of Printed Circuit Board Ruler with 180-Degree Measurements for Resistor, Capacitor, IC, SMD & More | 15cm, 20cm, 25cm 61
Product Introduction of Printed Circuit Board Ruler with 180-Degree Measurements for Resistor, Capacitor, IC, SMD & More | 15cm, 20cm, 25cm 62
Product Introduction of Printed Circuit Board Ruler with 180-Degree Measurements for Resistor, Capacitor, IC, SMD & More | 15cm, 20cm, 25cm 63
Product Introduction of Printed Circuit Board Ruler with 180-Degree Measurements for Resistor, Capacitor, IC, SMD & More | 15cm, 20cm, 25cm 64
Product Introduction of Printed Circuit Board Ruler with 180-Degree Measurements for Resistor, Capacitor, IC, SMD & More | 15cm, 20cm, 25cm 65
Product Introduction of Printed Circuit Board Ruler with 180-Degree Measurements for Resistor, Capacitor, IC, SMD & More | 15cm, 20cm, 25cm 66
