£465.88

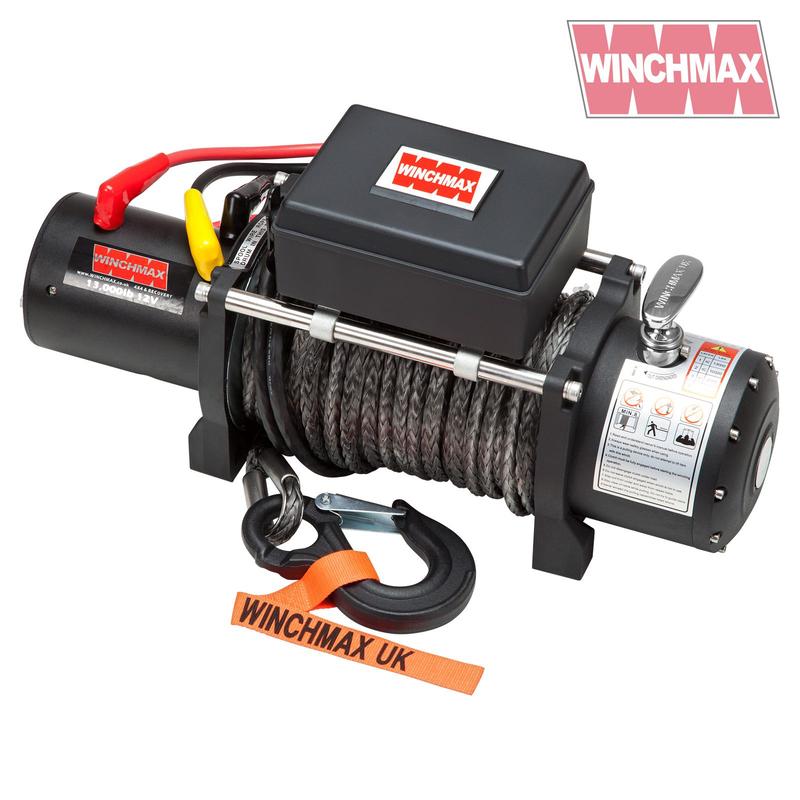

13,500lb (6,123kg) 12v Military Grade Winch. 28m x 11mm Dyneema Rope, Twin Wireless Remote Control
Sold by Winches UK ltd
Free shipping
Select options
Default
Shipping
£0.00
Winches UK ltd
241 items
Product description
Single Line Rated Pull
13,500lb (6,123kg)
Motor
12v 6.8hp/5.1kw, series wound
Gear Train
3 stage planetary
Gear Reduction Ratio
265:1
Clutch
Sliding ring gear
Braking Action
Automatic in the drum
Drum Size
Diameter 64mm (2.52") Length 224mm (8.82”)
Drum Finish
Galvanized
Cable
28m x 11mm Dyneema SK75 multi-strand synthetic rope
Hook
Competition hook with safety catch
Fairlead
Aluminium hawse fairlead
Battery Leads
2 gauge, 1.83m (72”) 25mmsq - 6.5mm diameter
Battery
Recommended 650CCA minimum
Winch Finish
Matt black (low light paint)
Weight (GW)
30kg
Overall Dimensions (LxWxH)
536 x 160 x 218mm (21.3" x 6.3" x 8.6")
Mounting Bolt pattern
10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
Motor Current
65-500A
No Load Line Speed
6.5m/min (21.3 ft/min)
Layer Rated
Line pull (lb)
Line Pull (kg)
Total Rope On Drum (ft/m)
1
13,000
5,896
20.4/6.22
2
9,530
4,332
41/12.0
3
7,929
3,604
71/21.0
4
6,770
3,077
85/24.0
Line Pull (lb/kg)
Line Speed ft/min (m/min)
Motor (Amps)
0 (0)
24.6ft (7.5m)
85A
3,000 (1363)
11.48ft (3.5m)
145A
6,000 (2727)
8.86ft (2.7m)
235A
9,000 (4090)
7.72ft (2.2m)
270A
13,000 (5896)
5.58ft (1.7m)
400A
3475390000000
