£432.60

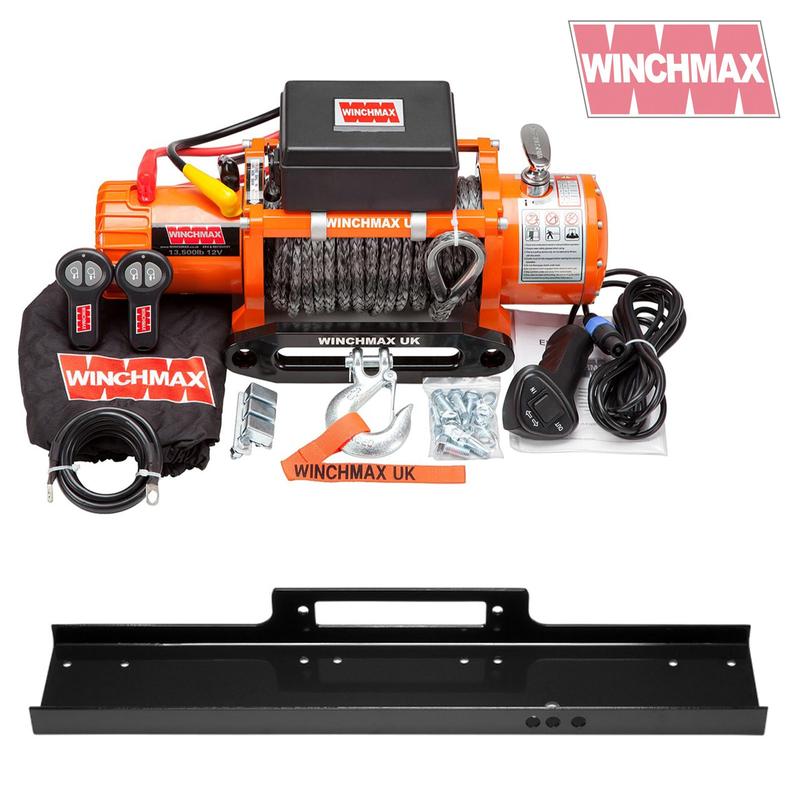

13,500lb (6,123kg) Original Orange 12v Electric Winch. 28 x 11mm Dyneema Rope, Flat Bed Mounting Plate
Sold by Winches UK ltd
Free shipping
Select options
Default
Shipping
£0.00
Winches UK ltd
241 items
Product description
Single Line Rated Pull
13,500lb (6,123kg)
Motor
12v 6.8hp/5.1kw, series wound
Control
Remote Switch, 4.5m lead, in and out
Gear Train
3 stage planetary
Gear Reduction Ratio
265:1
Clutch
Sliding ring gear
Braking Action
Automatic in the drum
Drum Size
Diameter 64mm (2.5") Length 224mm (8.82”)
Cable
28m x 11mm Dyneema SK75 multi-strand synthetic rope
Hook
Clevis hook 3/8 inch, zinc plated
Fairlead
One-piece billet aluminium hawse fairlead
Battery
Recommended 650CCA minimum for winching
Battery Leads
2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Finish
Original Orange powder coated
Weight (GW)
30kg (66lb)
Overall Dimensions (LxWxH)
536 x 160 x 218mm (21.3" x 6.3" x 8.6")
Mounting Bolt Pattern
10.00” ±0.015" x4 .50” ±0.010" (254 x 114.3mm)
Motor Current
65-500A
No Load Line Speed
6.5m/min (21.3 ft/min)
Layer Rated
Line pull (lb)
Line Pull (kg)
Total Rope On Drum (ft/m)
1
13,500
6,123
20.4/6.22
2
10,010
4,540
41/12.0
3
8,840
4,009
71/21.0
4
7,410
3,361
85/24.0
Line Pull (lb/kg)
Line Speed ft/min (m/min)
Motor (Amps)
0 (0)
24.6ft (7.5m)
70A
3,000 (1,363)
11.48ft (3.5m)
138A
6,000 (2,727)
8.86ft (2.7m)
218A
9,000 (4,090)
7.72ft (2.2m)
260A
13,500 (6,123)
5.58ft (1.7m)
415A
