Product description

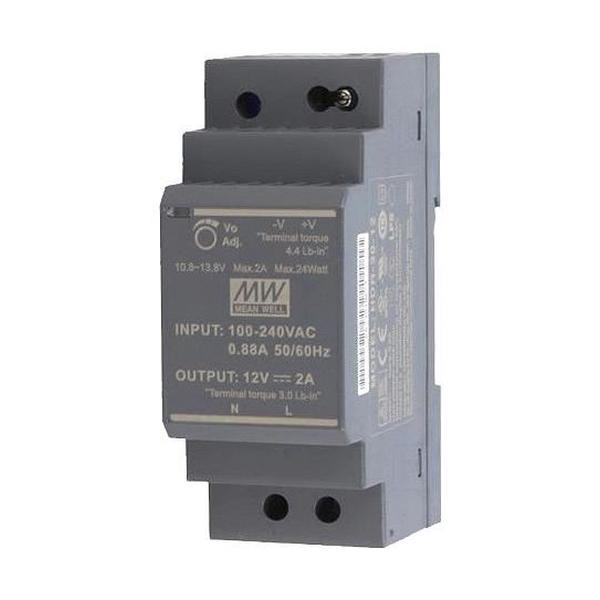

HDR-30 series is a economical ultra slim 15-36W DIN power supply. The body is designed with 35mm body width, which allows space saving inside the cabinets.
Short circuit, overload and over voltage protection
LED Indicator for power on
Adjustable DC Voltage output
TS-35/7.5 or TS-35/15 Mountable
Cool by free air convection
LED indicator for power on
Dimensions (HxWxD): 55 x 90 x 35mm
No load power consumptionUniversal input: 85~264V AC
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Power Supply Approvals: ITE
Output Voltage - Output 1: 12V
Output Current - Output 1: 2A
Input Voltage VAC: 85V AC to 264V AC
Power Supply Output Type: Adjustable, Fixed
Product Range: HDR-30 Series
