About this product
Plug TypeUK Plug
Warranty Duration13
Product description
The Power Dynamics PMDA4500 multi-zone amplifier is a versatile and efficient choice for professional spaces such as banks, supermarkets, schools, hotels, shopping centres, and restaurants. It has a 4x 500W output and is suitable for 100V and 8 Ohm systems.
This multi-room amplifier has four separate zones, each of which can handle up to 500W and has individual volume control. This feature allows you to customise the audio output in various parts of a building.
Offering four separate input options, this power amplifier accommodates both balanced and unbalanced connections. This flexibility enables the connection of a range of audio sources, meeting the needs of different installation requirements.
A high-efficiency design means the amplifier uses minimal power, reducing operational costs and environmental impact. There is an automatic standby mode which comes on after a period of inactivity, further enhancing energy efficiency and prolonging the amplifier's lifespan.
Lastly, this installation amplifier is built for safety and durability. It includes advanced protection against short circuits, overload, and overheating, ensuring reliable and long-term use. Its design is also suitable for 19-inch rack mounting, making it a practical addition to any setup.
•Professional multi-zone amplifier, ideal for commercial installations, such as supermarkets, shopping centres, restaurants and schools
•Class D design and high-efficiency performance with minimal power consumption
•Suitable for 100V and 8 Ohm systems for versatility
•Features four separate 500W zones, each with independent volume controls, ideal for multi-room settings
•Equipped with four line inputs, supporting balanced and unbalanced connections
4-Channel public address system
High efficient Class-D Power Amplifier
Lightweight and compact 1U design
Automatic standby feature

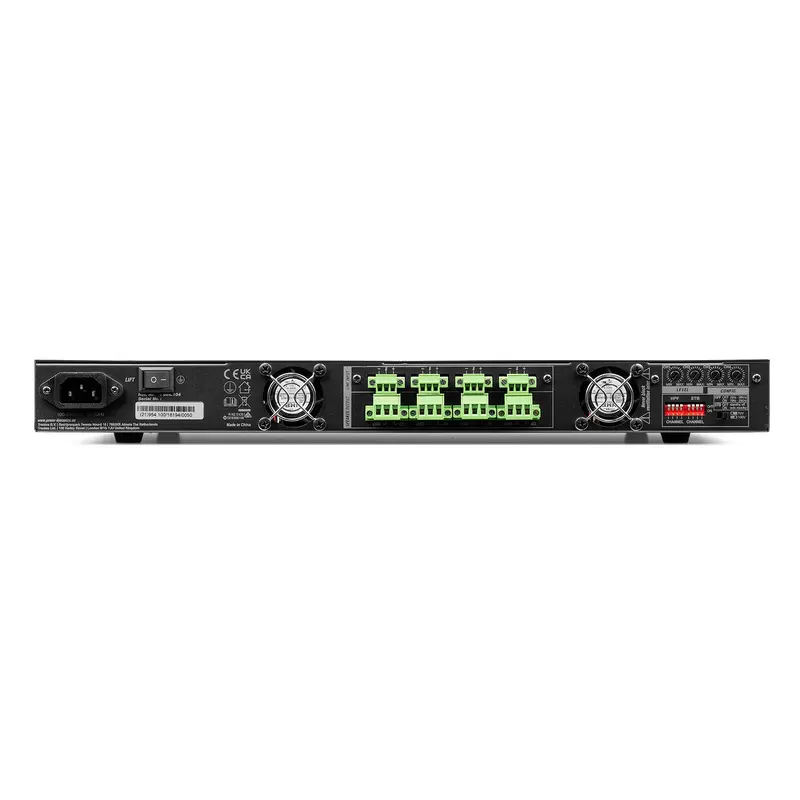

Four channel separate speaker outputs 8Ω/100V
Rate power output of 4x 500W
4 Balanced inputs per channel
Each input with separate gain control
On all channels, high pass option at 70Hz
Convenient dip switch pre-setting on the rear panel
Complete short circuit, overload, high temp and clip protection
Euro block screw terminals with lock possibility
Suitable for 19" Mounting
Output power: RMS @ 4 Ohm per channel: 400W
Output power: RMS @ 8 Ohm per channel: 350W
Output power: RMS @ 100V per channel: 500W
Impedance: 4 Ohm, 8 Ohm, 16 Ohm, 100V
Frequency response : 20Hz - 20.000Hz / 70Hz - 10.000Hz (high pass)
Signal-to-noise ratio: >80dB
THD: Input level: Line: 750mV
Power consumption: 0.324 - 0.395A
Power supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 375 x 482 x 44mm

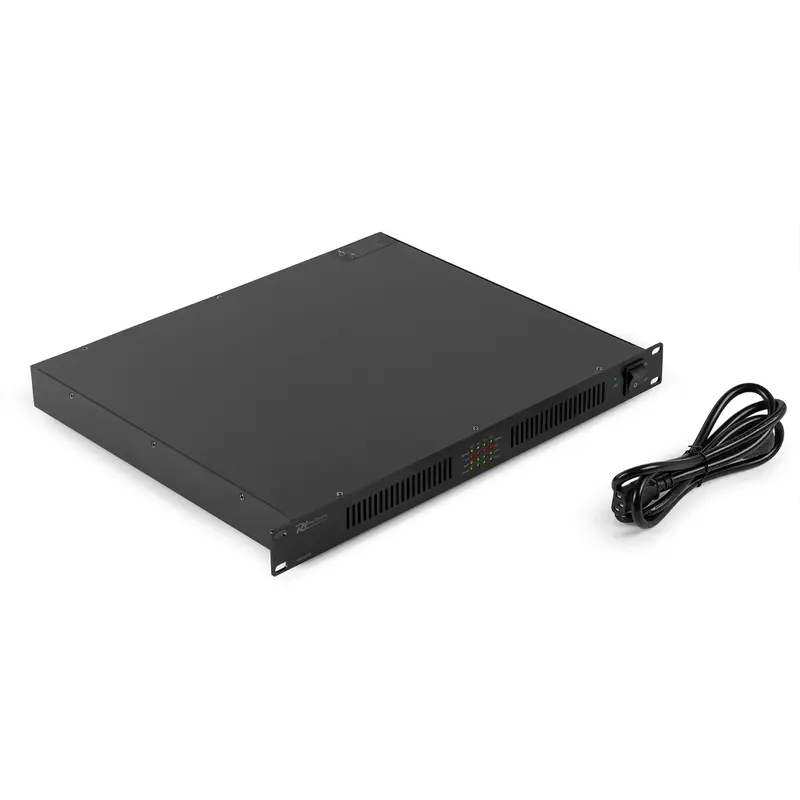

Included accessories: Power cable
