Kitchen Cabinet Set 5 Unit Sonoma Oak Cupboards Worktop Franke Sink Modern Nela

This kitchen is only available to purchase as a set; individual units are NOT available.

New and Flat Packed

Kitchen set features:

Perfect for small spaces.

Plinths, handles and fixings are all included.

Length of 40cm Worktop and 80cm Single Bowl Reversible Sink with waste included.

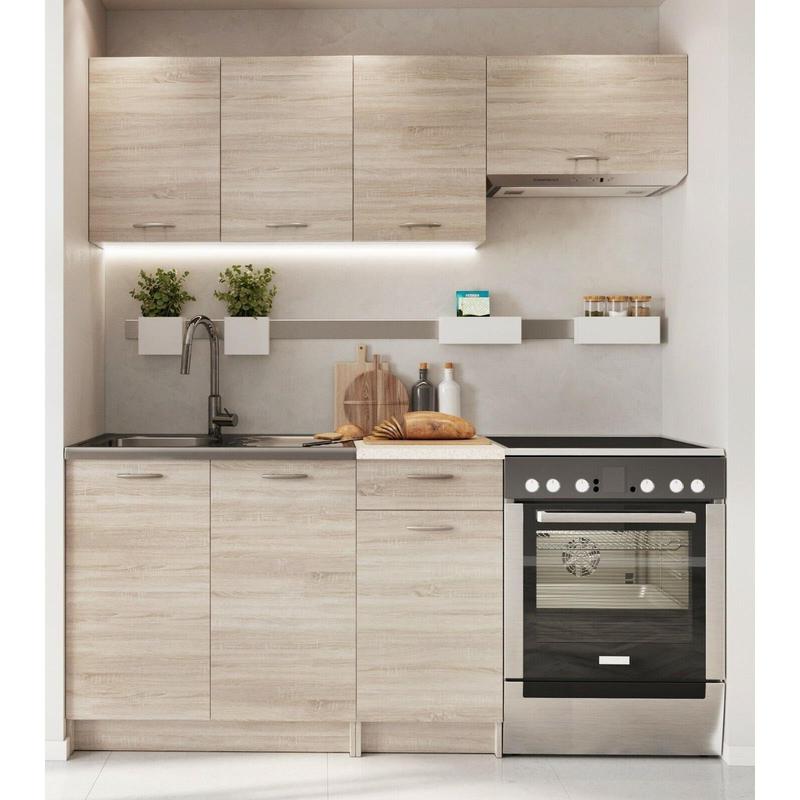

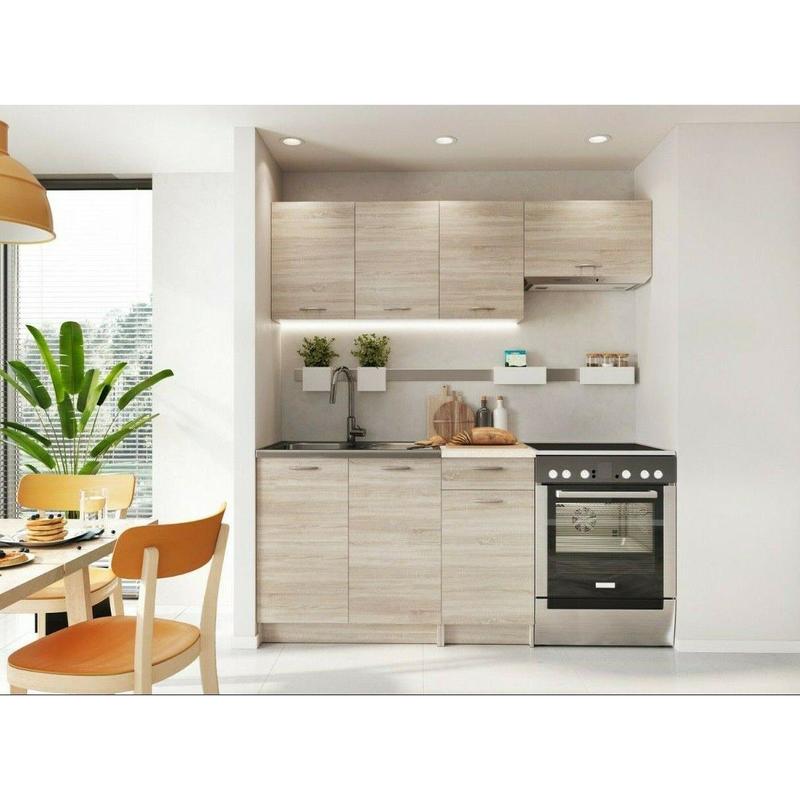

Compact and affordable 5 kitchen cabinets set in Sonoma Oak. NELA 1 is a small, modern set of furniture perfect for open plan living rooms combined with a small size kitchen. Superb kitchen cabinets or those on a budget.

This kitchen furniture sets are also a sensational solution for studios. Cabinets and fronts are made of strong and durable laminated chipboard with a thickness of 16 mm in the fashionable and popular Oak Sonoma colour.

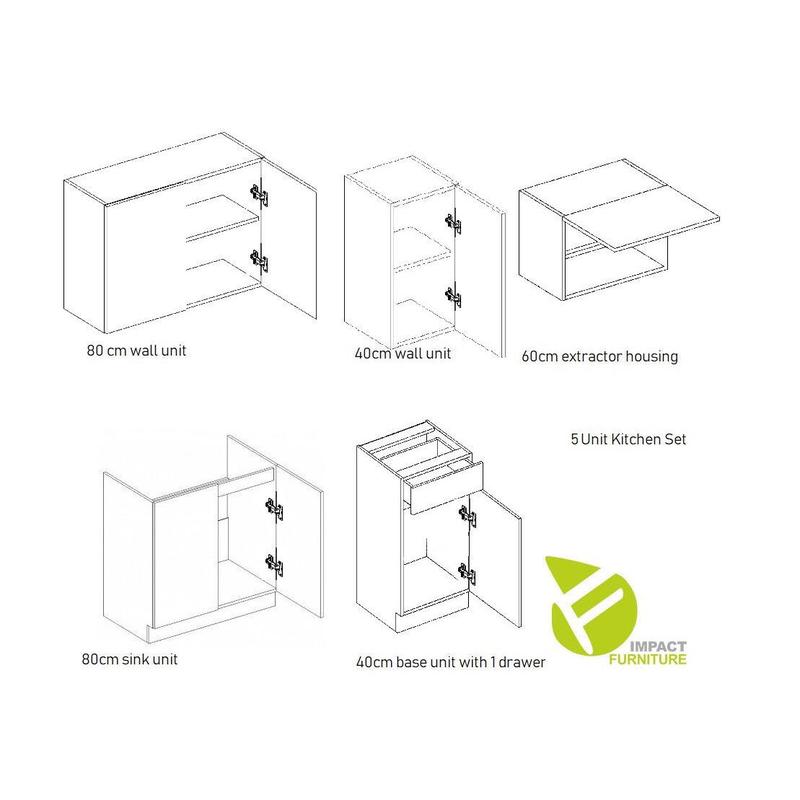

Kitchen Cabinets Set consists of 2 floor standing cabinets and 3 wall hanging cabinets.

NELA 1 kitchen units are complete with strong plastic easy to clean handles.

Product features:

a compact set of kitchen furniture consisting of 5 units

cabinets made of 16 mm laminated board

sturdy plastic handles

metal drawer runners

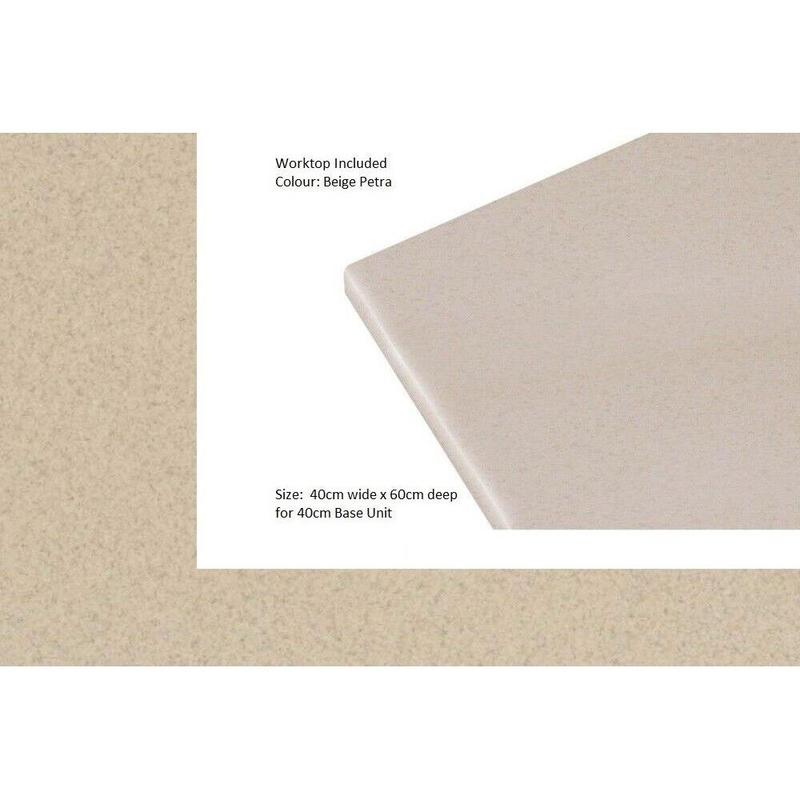

Includes 40cm piece of worktop

Includes Single Bowl (reversible) Sink and Waste

lower cabinets with a total width of 120 cm if place in a row

upper cabinets with a total width of 180 cm if placed in a row

furniture in a fashionable Sonoma Oak finish, textured laminate finish that looks like wood

All units are packed together in 2 boxes for home self-assembly.

Clear diagram instructions are provided.

Base units are 820mm tall without worktop.

Base units 463mm deep and depth of 600mm can be achieved by placing worktop on top and moving units away from the wall

Wall Units are 560mm tall.

Wall Units are 304mm deep.

Please note: The wall metal plates and attachments to the wall are not included with the wall cabinets.

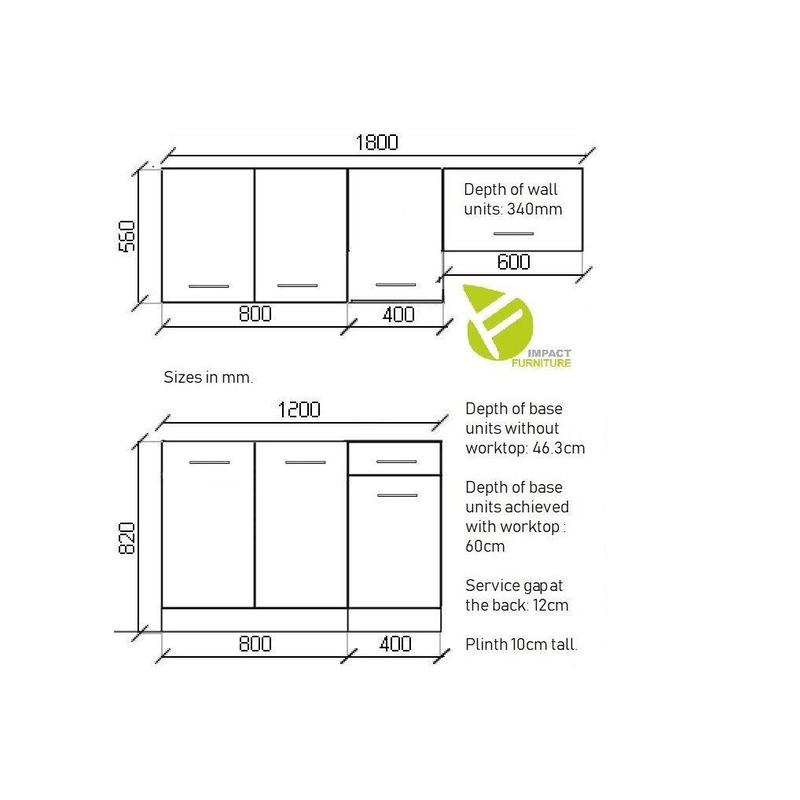

Dimensions of cabinets

2 base cabinets:

80cm cabinet for a sink with Single Bowl Sink and Waste, 2 door unit D80ZL - w 800 x h 820 x d 463 mm,

40cm floor standing cabinet with 1 piece of 40cm w x 60cm d worktop, unit with 1 drawer, 1 door D40 S/1 w 400 x h 820 x d 463 mm,

After fitting the worktop (and sink) and moving the cabinets away from the wall, the depth of the cabinets together with the worktop is 60 cm.

3 wall hanging cabinets:

80cm two-door wall hanging cabinet W80/56 w 800 x h 560 x d 304 mm,

40cm wall hanging cabinet 1 door W40/56 w 400 x h 560 x d 304 mm,

60cm wall hanging cabinet to be placed above the extractor W60OKGR w 600 x h 360 x d 304 mm,

Please note: wall metal plates and attachments to the wall are not included with the wall cabinets and needs to be sourced separately depending on the type of wall units will be attached to.

Installation tip: During installation units need to be brought away from the wall by 12cm leaving 12cm service gap at the back.

Total length of all units when put in a straight line is 180cm.

Units are freestanding and do not have to be placed in a straight line.

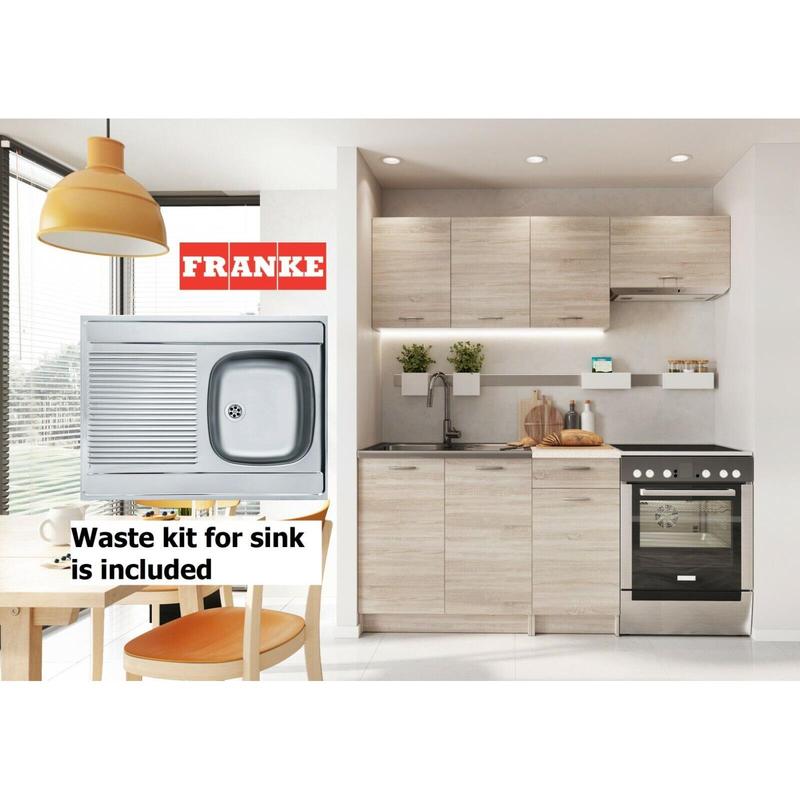

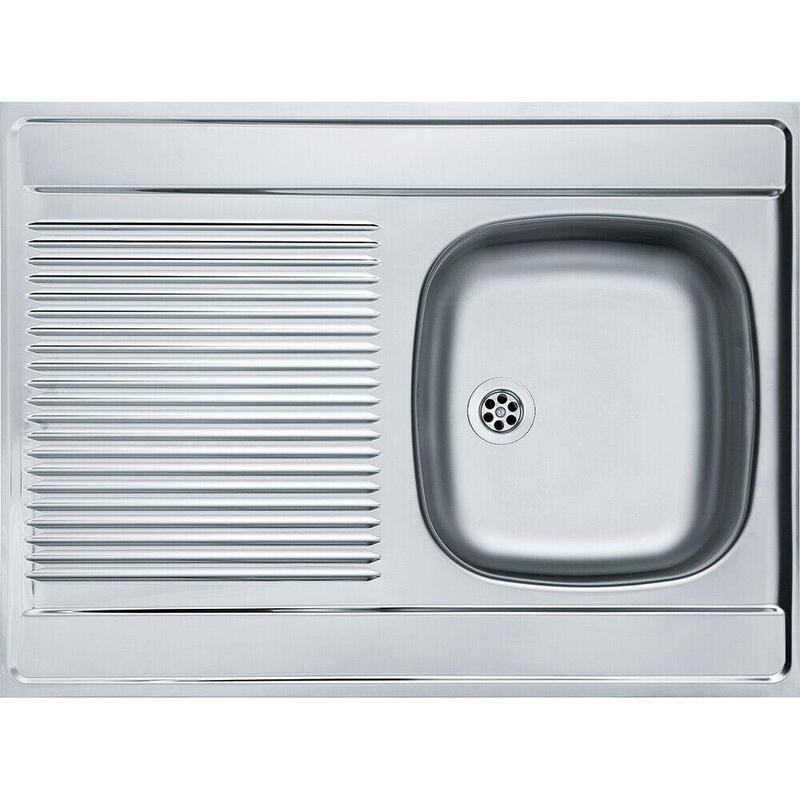

Single Bowl Sit Lay On Kitchen Sink 800 x 600mm Stainless Steel

Sink is universal / reversible and can be mounted left or right-handed.

There are no pre-drilled tap holes, these can be normally cut as per individual requirements by installer/plumber with special cutter (circular cutter drill attachment can be purchased from any DIY store) sit on sinks include complete waste kit and traditional plug holes.

The floor of the sink bowls is not over-sloped, it has just enough incline for the water to drain out.

Franke sit on sinks are laid on top of the kitchen units instead of a worktop. They are also suitable for self-standing units.

Franke sit-on sinks allow for reinforced timber frame to be inserted into all four sides. Please note sink can be installed without the timber frame. Timber frame is not supplied with the sink.

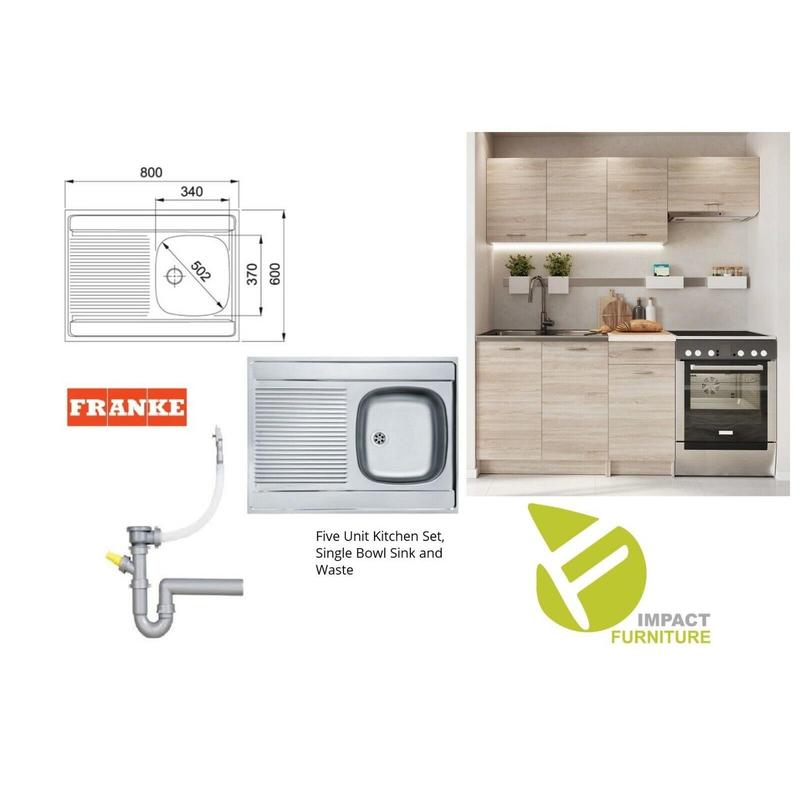

Description: single bowl single drainer - reversible universal left or right fit

Outside Measurements: W 800mm; D 600mm.

Measurements of the bowl: W 340mm;L 370mm; D 130mm

Returns:

We can not accept returns for items which have been assembled or partially assembled, products must be in original condition.

 Delivery Information:

Delivery of 3 boxes will be made by Palletised Courier to Building Door or Kerb Side Only

Standard FAST & FREE delivery to Green Zone ONLY.

Delivery to Red Zone is at extra charge and will take extra 2 working days. Please see a ZONE map attached.

Standard Delivery times are Mon-Fri 9am-6pm

 Optional Collection:

Set is also available for pick up from SG19 3BJ

This will easily fit in the boot of a small car.
