£24.00
WAGO 2773-2401 Push Wire Inline Splicing connector (Box of 100)
Sold by Electrical Clearance
5(1)
5 sold
Specifications
Customer reviews (1)
D**e R**n
Item: Default
1 March 2025
For more info on customer reviews, read ourTikTok Shop UK/EU Customer Review Policy.
About this product
Plug TypeUK Plug
Warranty DuriationNot Applicable
Product description

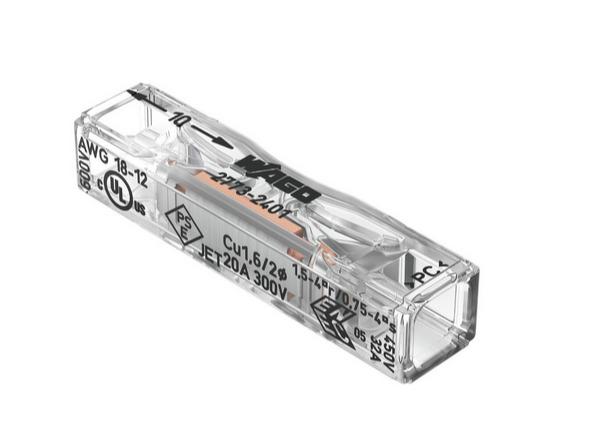

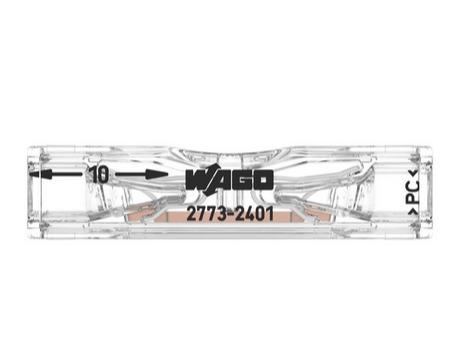

Genuine WAGO 2773-2401 Push Wire Inline Splicing connector (Box of 100)
2 conductor, 4mm² compact PUSHWIRE, 32A
PUSH WIRE Inline Splicing Connector; for solid and stranded conductors; max. 4 mm²; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
2773-2401 is a PUSH WIRE inline splicing connector for solid and stranded conductors.
•Solid conductors: 0.75mm² to 4mm² (18 AWG to 12 AWG)
•Transparent cover, transparent housing, 2-conductor
•Stranded conductors: 1.5mm² to 4mm²
•Nominal Voltage: 450V AC
•Rated current: 32A
•Surrounding maximum air temperature is 85°C
•UL 486C approved
•Polycarbonate (PC) insulation material
•Flammability class per UL94-V2
•Electrolytic copper (ECu) contact material with tin contact plating
•Continuous operating temperature of 105°C

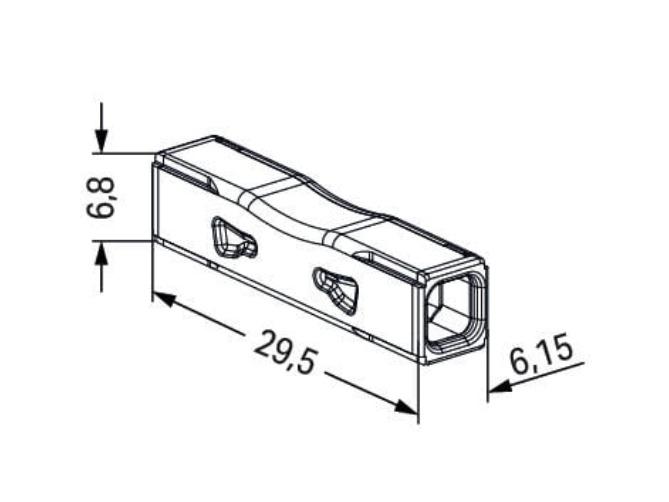

•Dimensions (WxHxD): 6.8x6.15x29mm
